Technical Specifications

Type

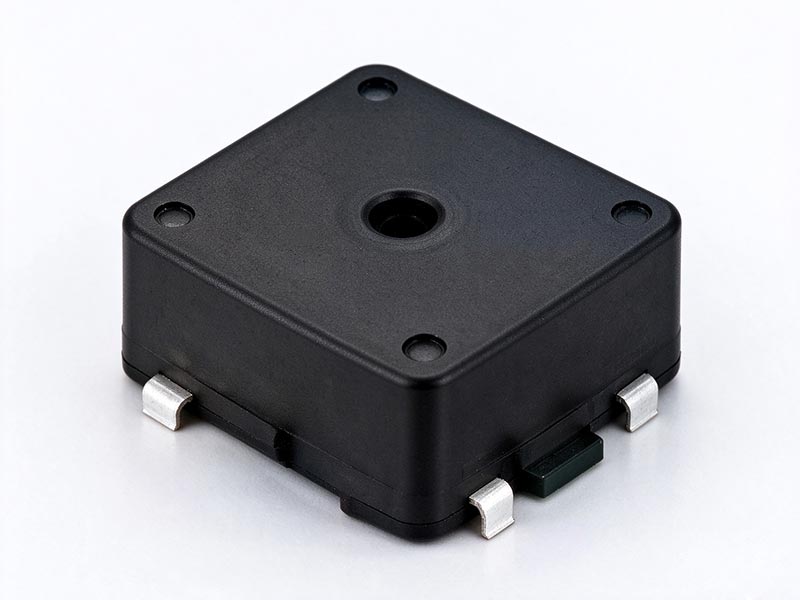

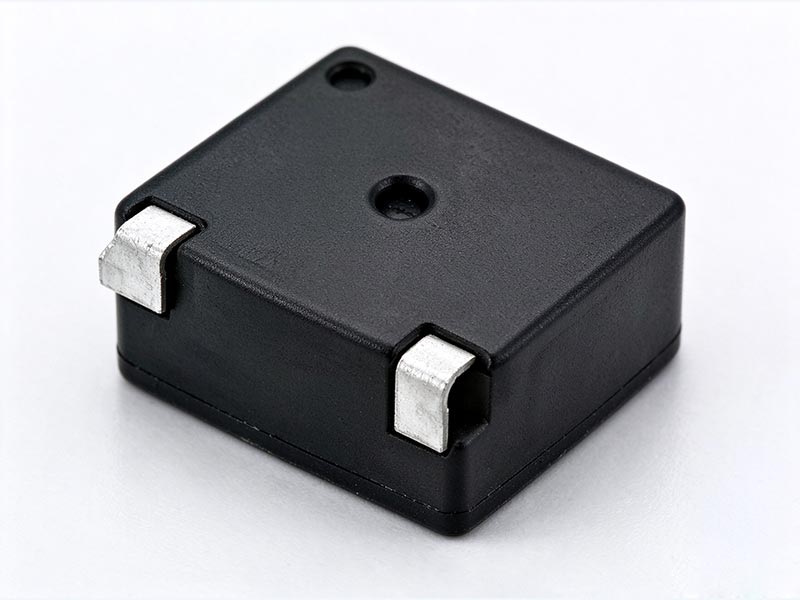

SMD Magnetic Buzzer
Model No.
8530
Size (L × W × H)
8.5 × 8.5 × 3.0 mm
Rated Voltage
3 V
Operating Voltage
2 – 4 V
Resonant Frequency
2.7 ± 0.5 kHz
Sound Pressure Level
≥ 85 dB (at 3 V, 10 cm)
Current Consumption
≤ 80 mA (at 3 V)
Operating Temperature
-20 ℃ ~ +70 ℃
Mounting
SMD (Surface Mount Device)
Housing Material
PBT (Black)
Weight
Approx. 0.4 g
Compliance
ISO9001, RoHS, REACH
Custom Options
Voltage, frequency, SPL, size, and appearance

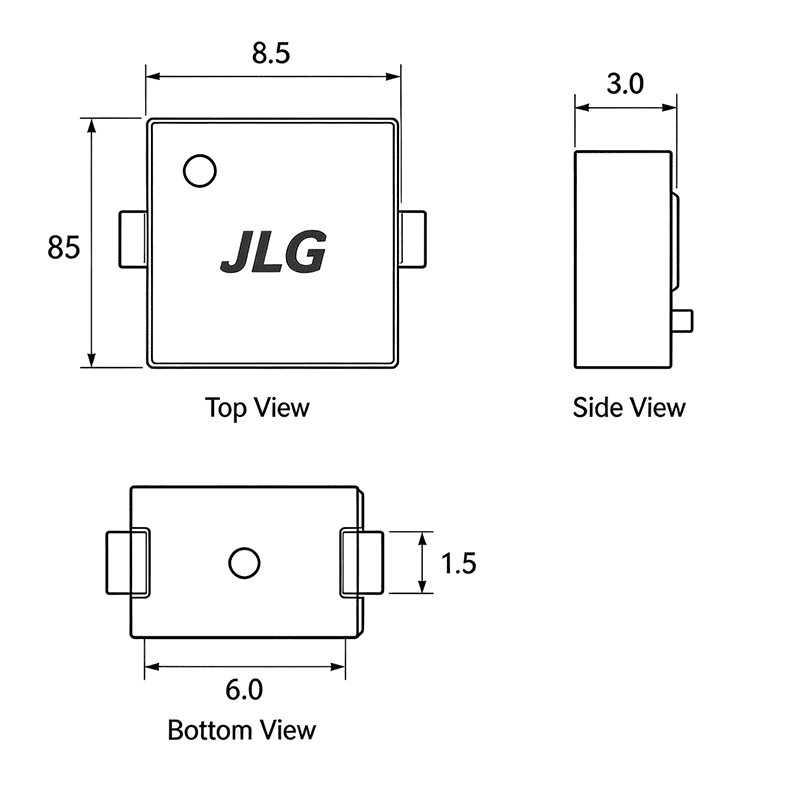

Dimensions (Unit: mm)

Dimensions drawing

Typical Applications

View All Applications

Customized Solution for Your Needs

We support small batch and mass production with flexible customization options, including voltage, frequency, SPL, size, and appearance.
