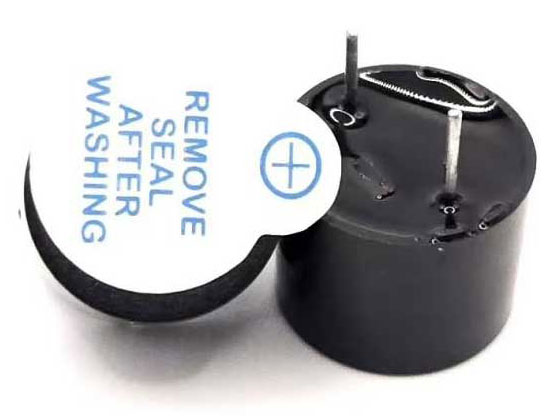

Part No: EAB-12095-5VPA7.6
| Rated Voltage | 5VDC |
| Operating Voltage | 4～7VDC |
| *Sound Output at 10cm | ≥85dB |
| *Current Consumption | ≤50mA |
| Resonant Frequency | 2700±300Hz |
| Operating Temperature | -20℃～+70℃ |
| Storage Temperature | -30℃～+80℃ |
| Weight | 1.6g |
| Housing Material | Black PPO |
| Environmental Protection Regulation | RoHS |
| Welding method | Artificial welding /wave soldering |
DIMENSIONS(UNIT: mm) Tolerance: ±0.5mm Except Specified
Note: Dust sticker on the top
| 项目 | 测试条件 | 试验后要求 |
|---|---|---|
| 高温试验 | 放置85±2℃ 96小时，再室温放置2小时。 | 声压变化±10dB。 |
| 低温试验 | 放置-30±2℃ 96小时，再室温放置2小时。 | 声压变化±10dB。 |
| 恒湿试验 | 存放在温度：60±5℃湿度：90%--95%的环境里96小时，然后放置到室温下放置2小时后测试 。 | 声压变化±10dB。 |
| 温度循环试验 | 放置-30±2℃ 30分钟、25℃±10℃放置15分钟，15分钟后再将产品放入+85±2℃30分钟、常温25℃±10℃放置 15分钟，20个循环后放置常温下2小时。 | 声压变化±10dB。 |
| 跌落试验 | 正面和侧面从100mm高度只有跌落在4cm厚度的木板上3次。 | 声压变化±10dB。 |
| 振动试验 | 频率10~55Hz，振幅1.5mm，3个方向，振动2小时。 | 声压变化±10dB。 |
| 可焊性试验 | 端子在松香中浸入5秒并在260±5℃锡中浸3±0.5秒 | 有95%吃锡效果。 |
| 连续通电试验 | 温度：室温25℃ 电压：额定电压3.3V，频率：频率2.7KHz 时间：500小时 | 声压变化±10dB。 |
| 端子强度试验 | 在每个端子上施加9.8N（1.0kg）的轴向力 10秒。 | 端子没有明显的损坏和切断 |
Typical Frequency Response Curve
Standard Measurement conditions
Temperature:25±2℃ Humidity:45-65%
Acoustic Characteristics:
The oscillation frequency, current consumption and sound pressure are measured by the measuring instruments shown below
In the measuring test, buzzer is placed as follows:
We support small batch and mass production with flexible customization options, including voltage, frequency, SPL, size, and appearance.
